90mm 60W 90W 120W DC Gear Motor

Features:
1.diameter:90mm
2.rated voltage:12V,24V,90V
3.motor speed:3000rpm
4.reduction ratio:3/1 to 200/1
Application: financial equipment, office equipment, electronic locks, remote control toys, precision instruments and meters, automobile field, medical equipment, consumer electronic products, household appliances, electric glass doors.
The specifications can be designed according to the customer's requirement!
Availability:
  • DC5GU60-120

  • Longway

  • Permanent Magnet DC Motor

Technical Specifications

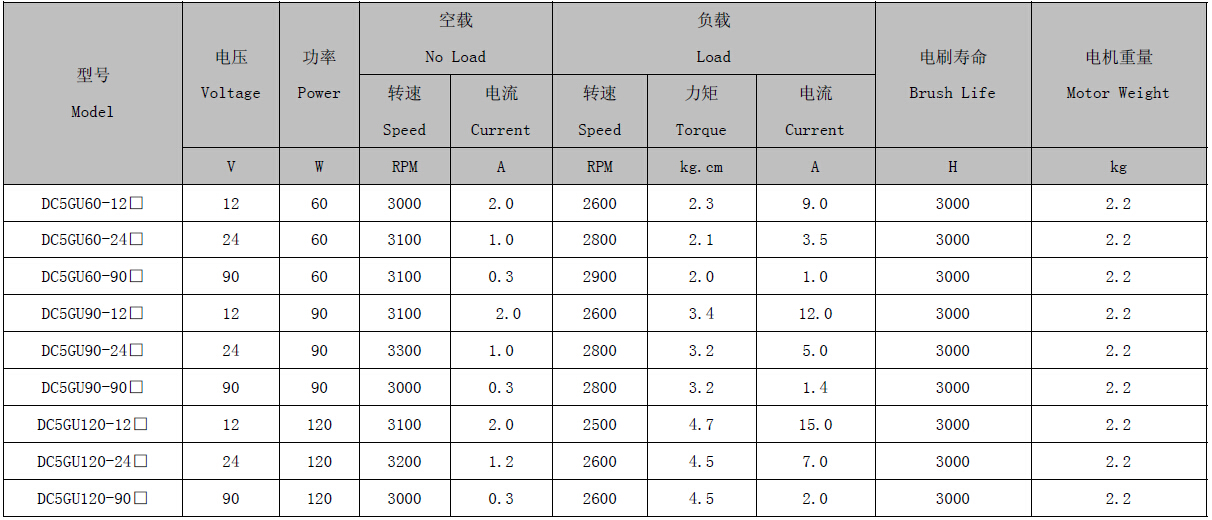

Motor specifications:
3

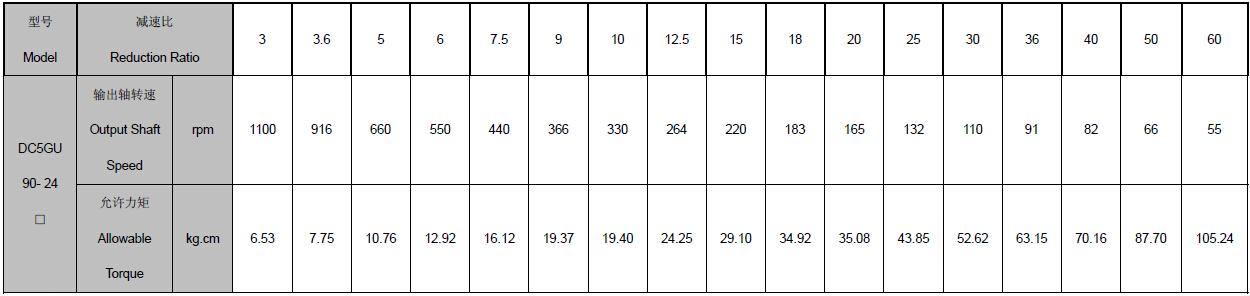

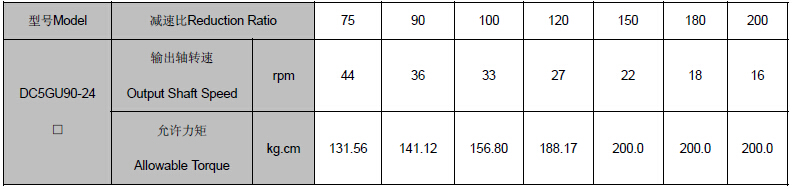

Gearhead specifications:
4

5

Dimensions

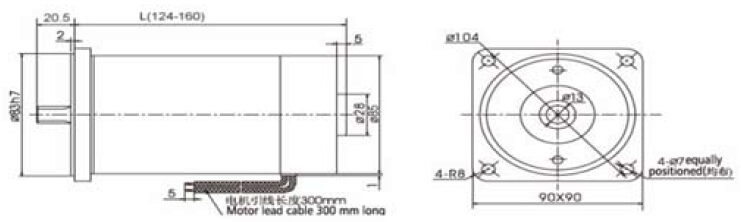

Motor Dimensions:
1

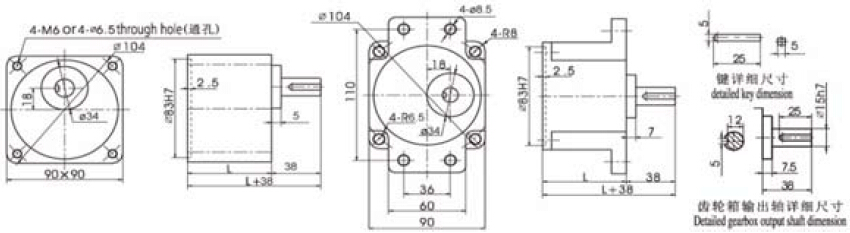

Gearhead Dimensions:
2
