86mm nema 34 closed loop stepper motor and driver

step angle:1.8degree
diameter:86mm
Application:Printers, ticketing machines, engraving machines, medical instruments, stage lighting, textile industry, etc

  • 86ST
  • Longway

Technical Specifications

Motor      Model

Step angle

Current

Resistance

Inductance

Holding   torque

Motor length

Total length

Suitable  driver

Encoder   resolution

86ST103

1.8°

6.0A

0.45±10%Ω

3.7±20%mH

4.5 N.m

82mm

103mm

HSS86

1000ppr

86ST139

1.8°

6.0A

0.44±10%Ω

3.7±20%mH

8.0 N.m

118mm

139mm

HSS86

1000ppr

86ST177

1.8°

6.0A

0.45±10%Ω

5.2±20%mH

12.0 N.m

156mm

177mm

HSS86

1000ppr

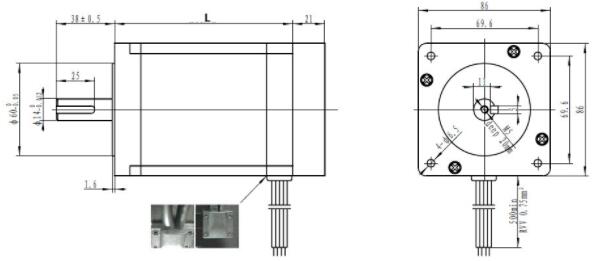

Dimensions

QQ截图20180904152139
